Mercedes-Benz MBUX Hyperscreen to debut on EQS

Mercedes-Benz MBUX Hyperscreen

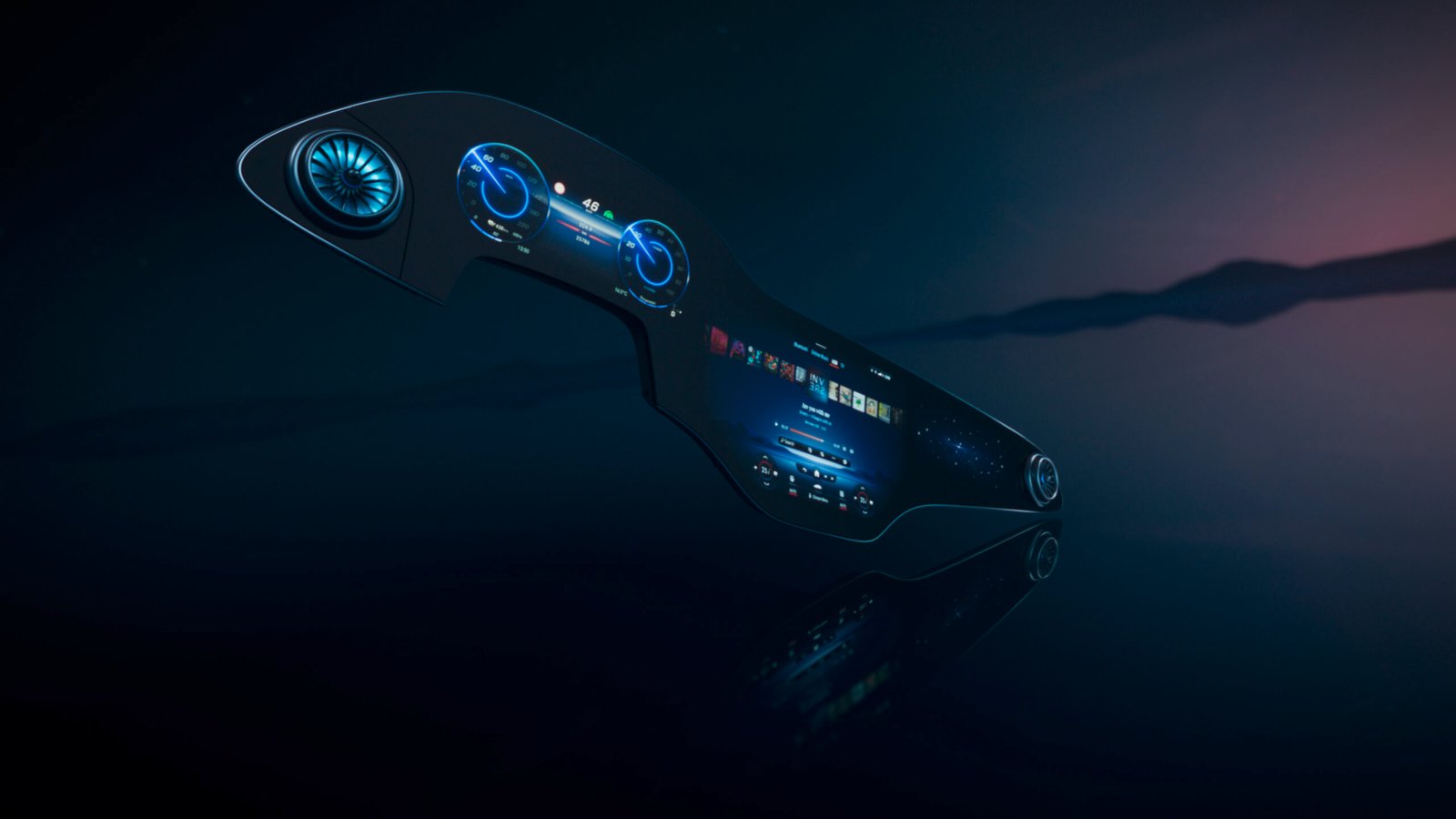

Mercedes-Benz MBUX hyperscreen which stretches almost the entire width from the left to the right A-pillar will debut first on EQS all electric model.

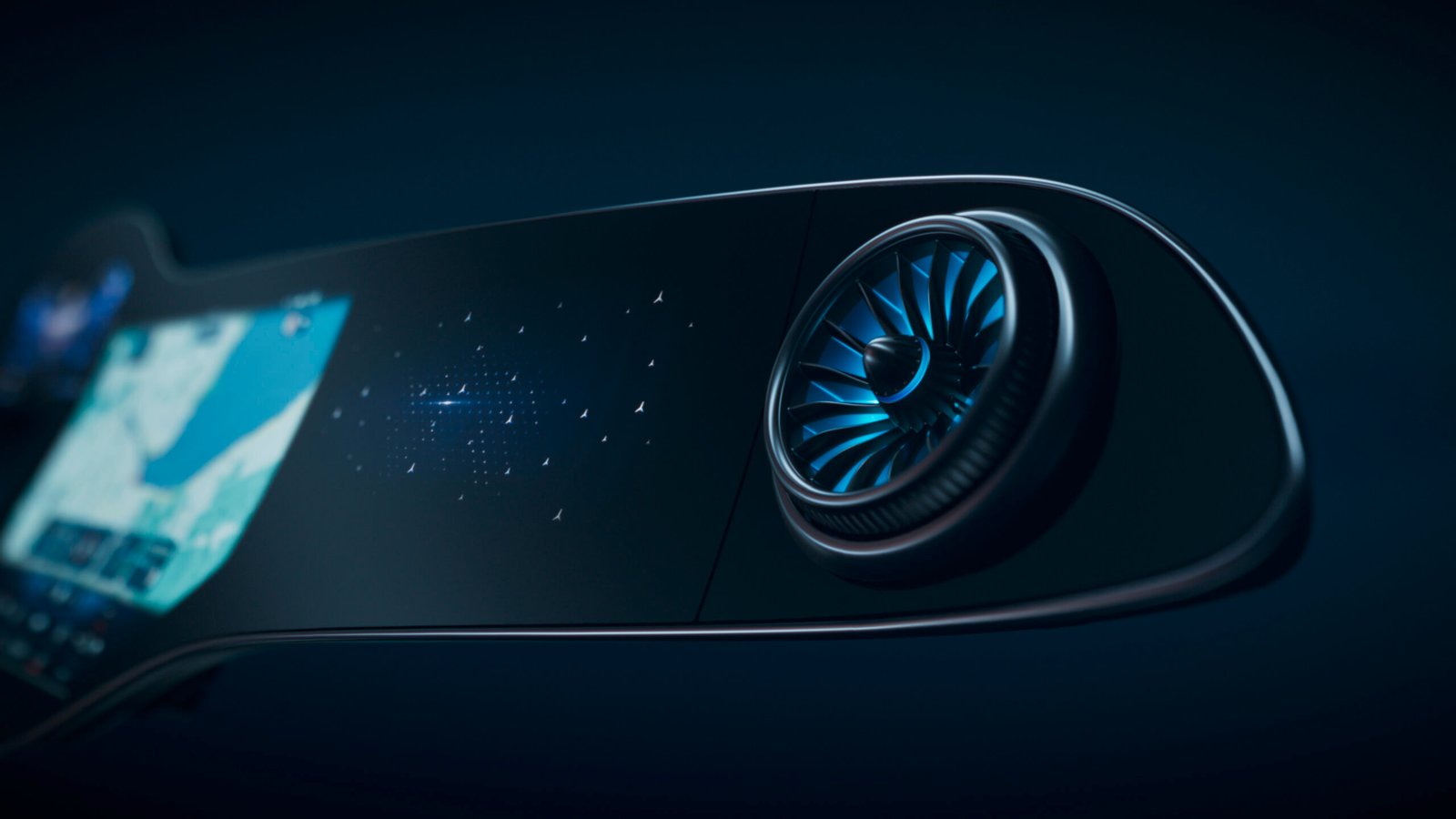

The MBUX Hyperscreen is an example of digital/analogue design fusion: several displays appear to blend seamlessly, resulting in an impressive, curved screen band. Analogue air vents are integrated into this large digital surface to connect the digital and physical world.

The passenger also has its own display and operating area, which makes travel more pleasant and entertaining. With up to seven profiles, it is possible to customize the content. However, the entertainment functions of the passenger display are only available during the journey within the framework of the country-specific legal regulations. If the passenger seat is not occupied, the screen becomes a digital decorative part. In this case, animated stars, i.e. the Mercedes-Benz Pattern, are displayed.

Mercedes-Benz MBUX Hyperscreen

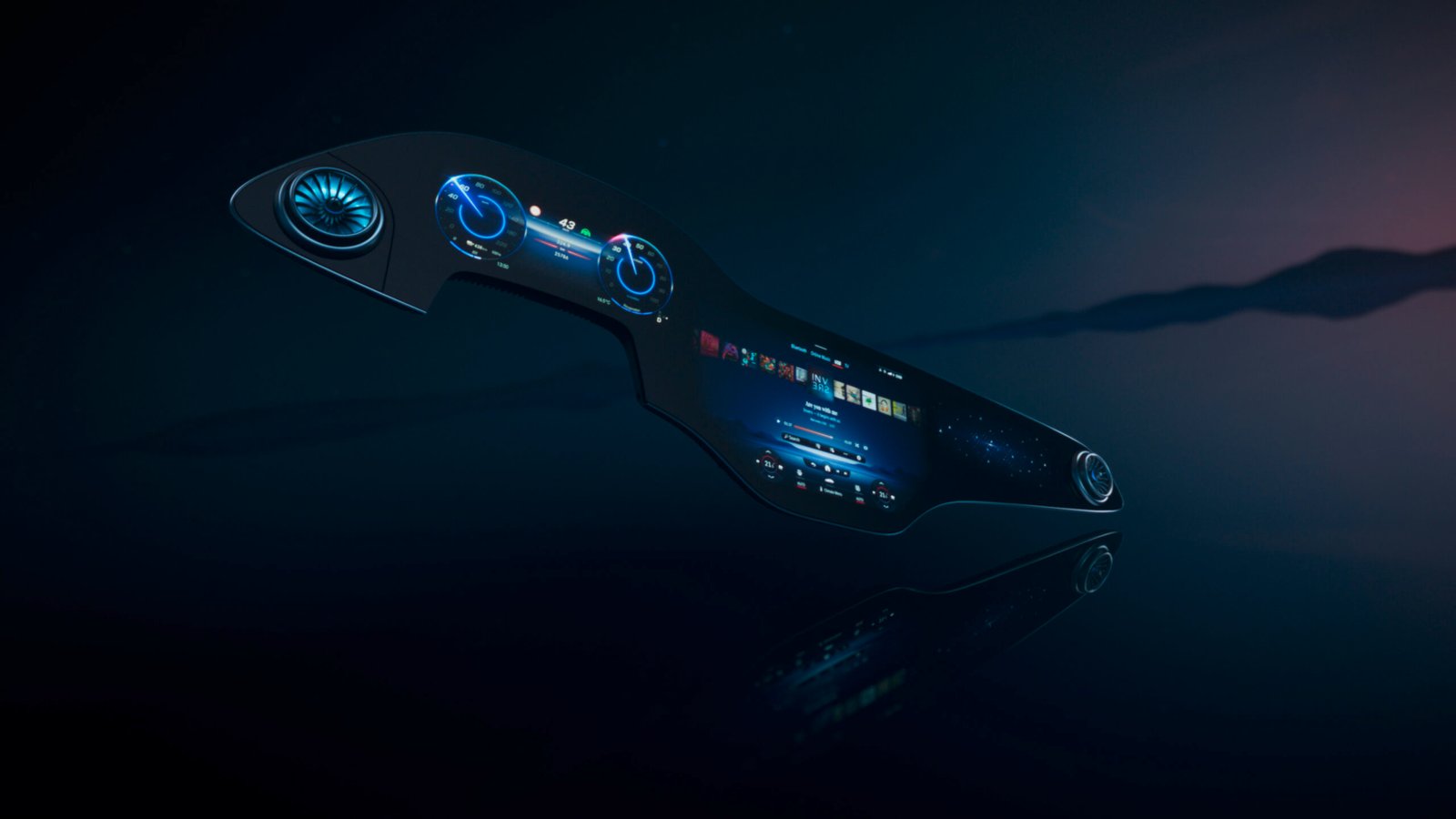

With the MBUX Hyperscreen, several displays appear to merge seamlessly, resulting in an impressive 141-centimetre wide and curved screen band. The area that passengers can experience is 2,432.11 cm2.

The large glass cover display is curved three-dimensionally in the moulding process at temperatures of approx. 650°C. This process allows a distortion-free view of the display unit across the entire width of the vehicle, irrespective of the display cover radius. To get to the most important applications, the user must scroll through 0 menu levels. That’s why Mercedes-Benz calls this zero layer.

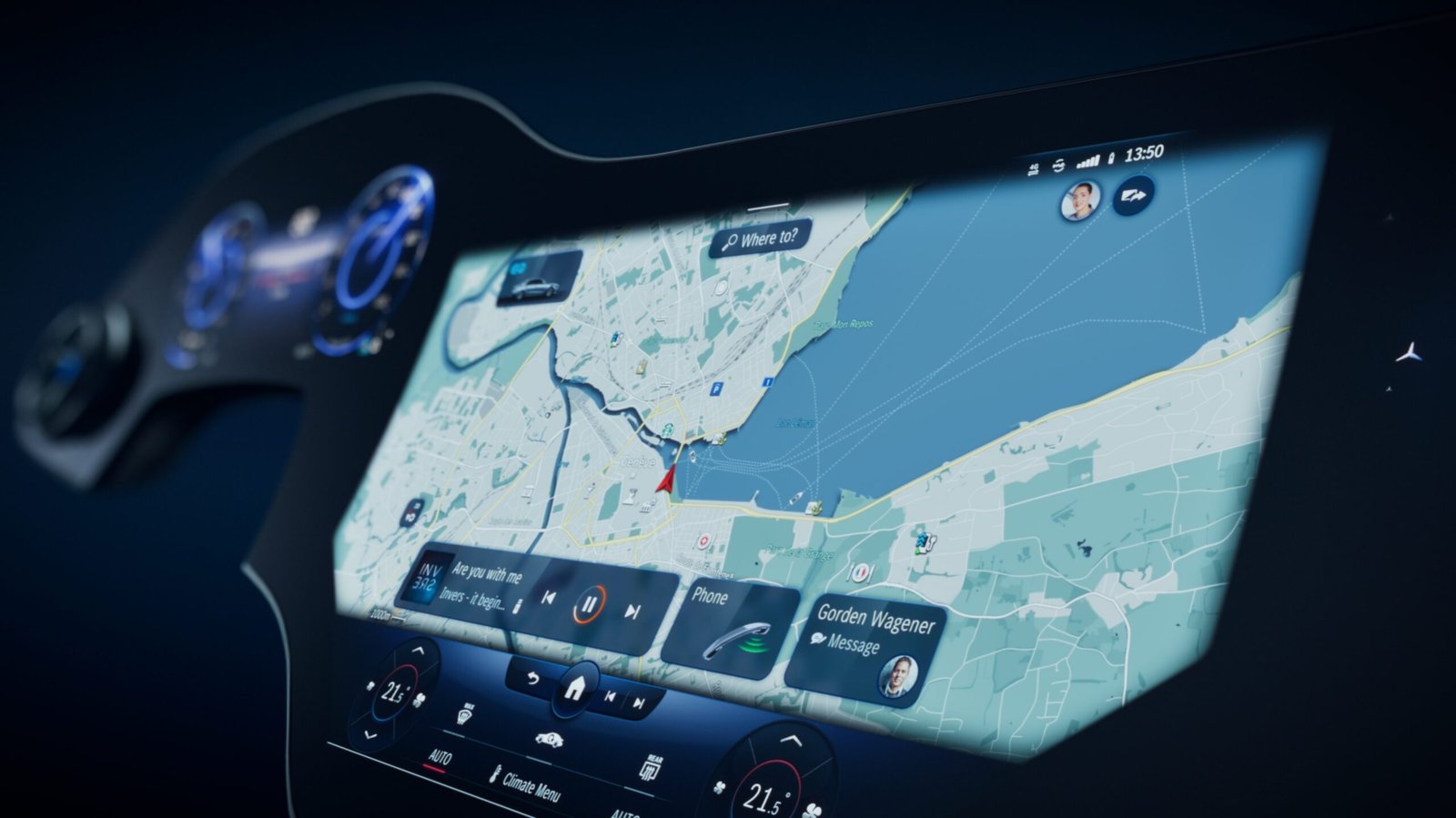

The MBUX system proactively displays the right functions at the right time for the user, supported by artificial intelligence (see below for examples). The context-sensitive awareness is constantly optimised by changes in the surroundings and user behaviour. The so-called zero-layer provides the user at the top level of the MBUX information architecture with dynamic, aggregated content from the entire MBUX system and related services.

  • If you always call a certain friend on the way home on Tuesday evenings, you will be asked to make a corresponding call on that day of the week and at this time of day. A business card with its contact information appears, and – if stored – its image appears. All MBUX suggestions are linked to the user’s profile. If someone else drives the EQS on a Tuesday night, this recommendation is not made – or there is another, depending on the preferences of the other user.
  • If the EQS driver regularly uses the massage function according to the hot stone principle in winter, the system learns and automatically suggests the comfort function in wintry temperatures.
  • If the user regularly switches on the heating of the steering wheel and other surfaces for seat heating, for example, this is suggested to him as soon as he presses the seat heating.
  • The chassis of the EQS can be lifted to provide more ground clearance. A useful function for steep garage entrances or sleep policemen. MBUX remembers the GPS position at which the user made use of the “Vehicle Lift-Up” function. If the vehicle approaches the GPS position again, MBUX independently proposes to lift the EQS.

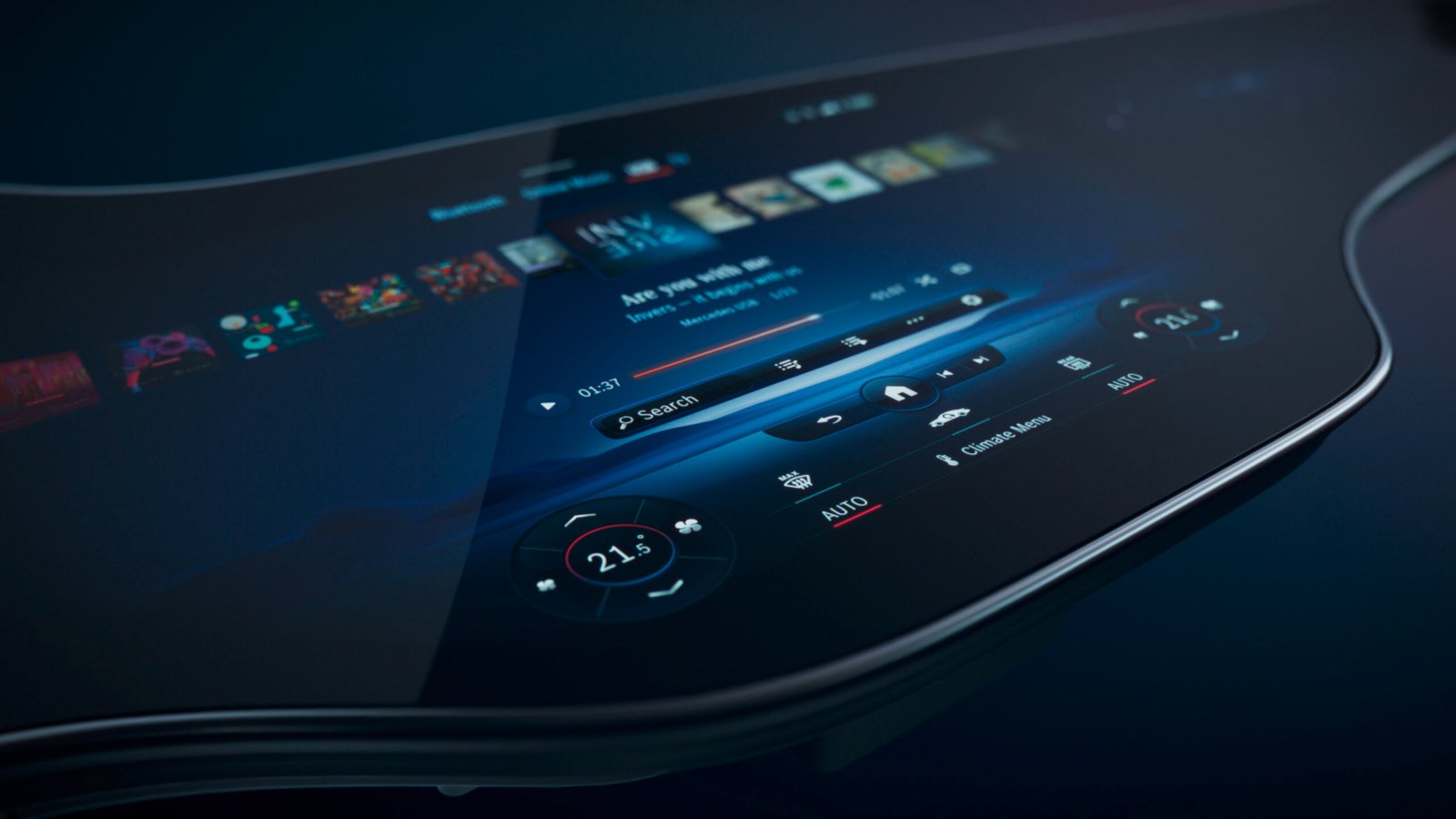

There are a total of 12 actuators beneath the touchscreen for haptic feedback during operation. If the finger touches certain points there, they trigger a tangible vibration in the cover plate. Two coatings of the cover plate reduce reflections and make cleaning easier. The curved glass itself consists of particularly scratch-resistant aluminium silicate.

8 CPU cores, 24-gigabyte RAM and 46.4 GB per second RAM memory bandwidth are some of the MBUX technical specifications. With the measurement data of a 1 multifunction camera and also 1 light sensor the brightness of the screen is adapted to the ambient conditions.
